Water Pump and Thermostat Housing [2.1L]

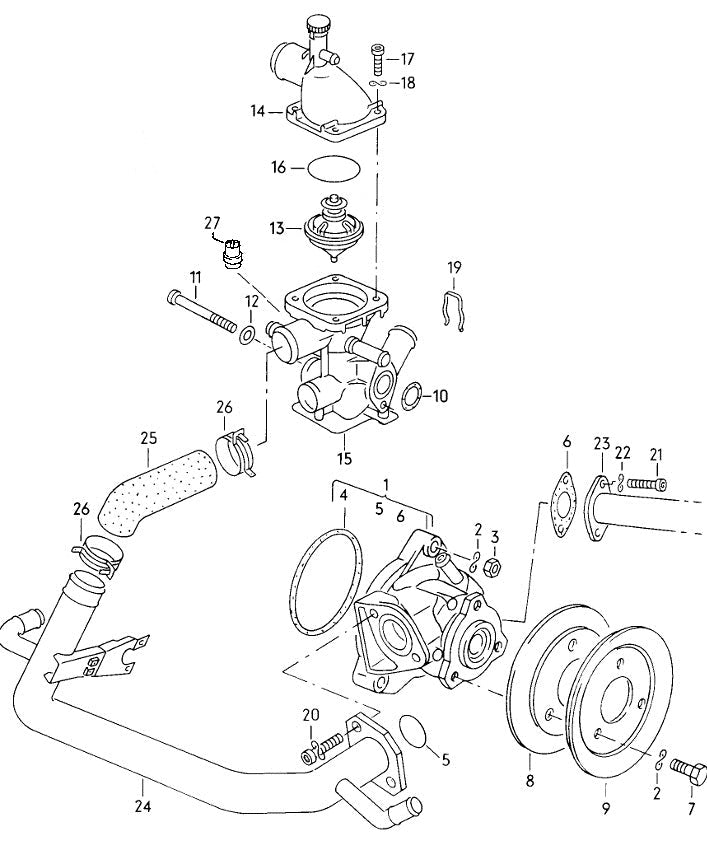

Visually identify the product you need in the schematic diagram, make note of the item number, then locate that same number in the hyperlink list. Click the link to be taken to the product page. If the item you need is not in the list, we do not currently carry it.
- 1. 2.1 Water Pump [Late Vanagon]
- 4.
- 5. O-Ring for Pipe to Water Pump [Late Vanagon]
- 6. Coolant Gasket for Various Locations
- 10. O-Ring for Lower Thermostat [Late Vanagon]
- 13. 87°C Thermostat
- 14. Upper Thermostat Housing [Late Vanagon]
- 14. Billet Upper Cover for Thermostat Housing
- 15. Lower Thermostat Housing [Late Vanagon 2WD]
- 15. GoWesty Thermostat Housing Kit
- 16. Thermostat O-Ring
- 19. Coolant Temperature Sensor Clip [Vanagon]
- 23. Coolant Crossover Pipe (Water Pump to Right Head) [All Waterboxer]
- 24. Stainless Steel Coolant Pipe - Water Pump to Thermostat [Late Vanagon]
- 25. Thermostat Housing Pump Coolant Hose
- 27. Coolant Temperature Gauge Sensor
