Cooling Hoses - 2100cc [Syncro]

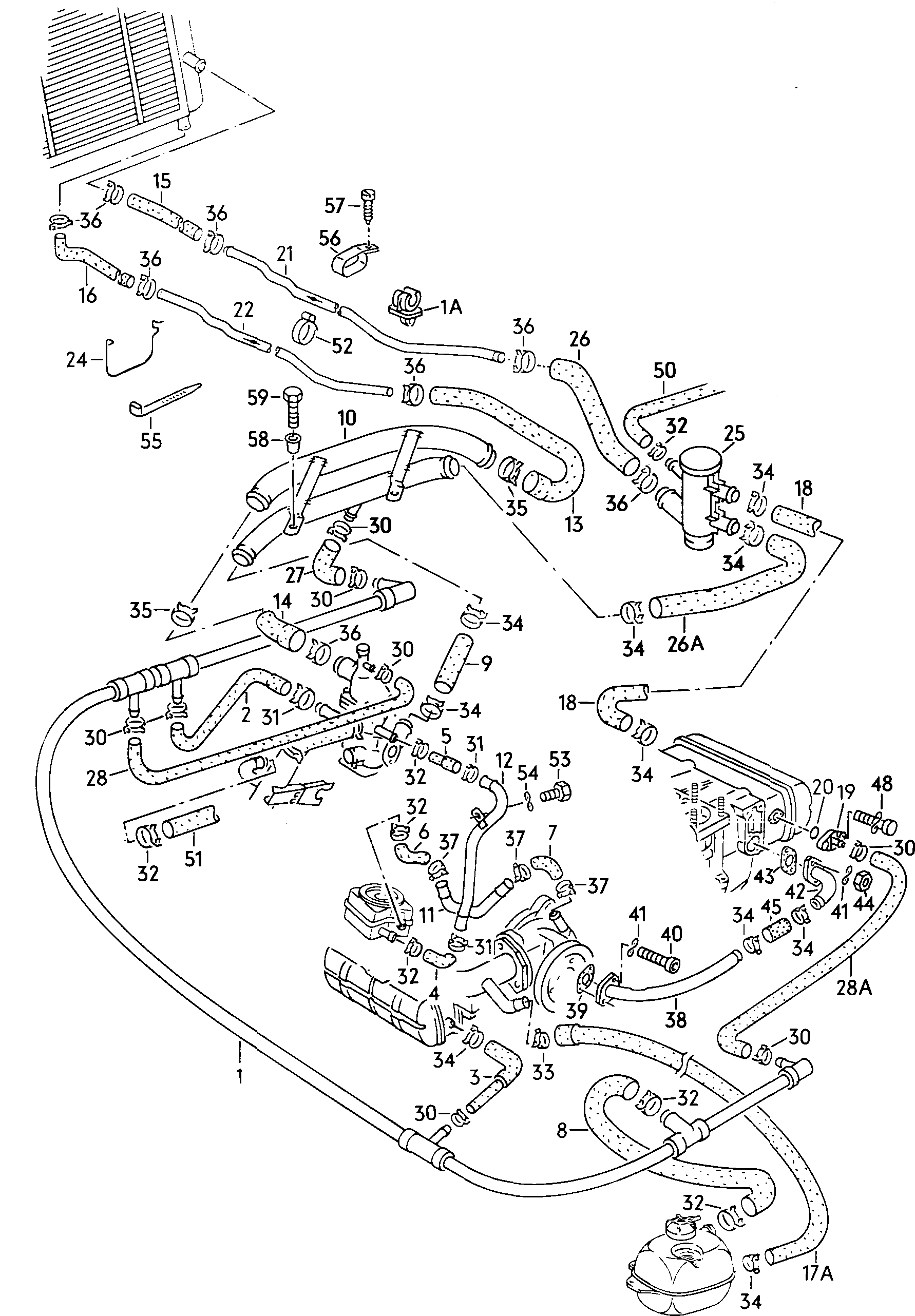

Visually identify the product you need in the schematic diagram, make note of the item number, then locate that same number in the hyperlink list. Click the link to be taken to the product page. If the item you need is not in the list, we do not currently carry it.
- 1. Coolant Bleed Ring Replacement Kit
- 2. Thermostat Housing to "T" Bleed Pipe Coolant Hose
- 3. Aluminum Coolant Elbow and Hose Replacement Kit
- 4. Coolant Hose - Thermostat to Oil Cooler [Late Vanagon]
- 5. Coolant Hose - Thermostat Housing to Oil Cooler [Late Vanagon]
- 6. Coolant Hose - Oil Cooler to Pump Pipe [Late Vanagon]
- 7. Coolant Hose - Water Pump to Oil Cooler [Late Vanagon]
- 8. Coolant Hose (Coolant Expansion Reservoir to Outer Water Pipe)
- 9. Coolant Hose - Lower Crossover Pipe to Thermostat Housing [Syncro]
- 10. Double Coolant Pipe [Syncro]
- 11. Coolant Pipe - Stainless Water Pump to Oil Cooler [Late Vanagon]
- 12. Water Pipe, Thermostat Housing to Oil Cooler
- 13. Crossover Pipe to Radiator Coolant Hose [Syncro]
- 14. Coolant Hose - Thermostat Housing to Crossover Pipe [Syncro]
- 15. Right Side Radiator Coolant Hose
- 16. Left Side Radiator Coolant Hose
- 17A. Expansion Tank to Water Pump Coolant Hose [Syncro]
- 18. Coolant Hose (RH Cylinder Head to Hose Junction)
- 19. Air Bleed Nipple Kit
- 20. Coolant Gasket for Various Locations
- 21. Stainless Steel Coolant Pipe Set [Syncro]
- 25. Plastic Coolant Hose Junction Connector [Syncro]
- 25. Stainless Steel Coolant Hose Junction [Syncro]
- 26A. Coolant Hose (Distribution Tower to Crossover Pipe)
- 26. H-Pipe to Radiator Pipe Coolant Hose [Syncro]
- 28A. 8mm Coolant Hose
- 36. Spring Clamp (47x8mm)
- 38. Coolant Crossover Pipe (Water Pump to Right Head) [All Waterboxer]
- 42. Stainless Coolant Elbow Pipe
- 43. Coolant Elbow to Right Head Gasket
- 45. Coolant Hose (Water Pump to Elbow)
