GoWesty 2450cc Engine Kit

Product:GVW-2450-KIT
Works With:1986-1991
Manufacturer:GoWesty
Difficulty:

Requires professional-level tools, talent and experience.

1 Review
$3,079.25
1 Review

This item is not eligible for promotional discounts
Proposition 65: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
Self-certified made in USA of U.S. and imported parts

9.4:1 compression, with 132 hp & 177 ft.lbs of torque when fitted with GW-EFI.

Here is what you get with our 2450cc high output engine kit:

  • Counter-weighted 84.5mm stroke crankshaft
  • Camshaft with GoWesty proprietary profile
  • New connecting rod set with new ARP rod bolts
  • Custom made in USA JE brand 96mm forged pistons with wrist pins, clips and rings
  • Torque plate-honed 96mm cylinders
  • GoWesty copper cylinder head gaskets
  • New hydraulic lifters

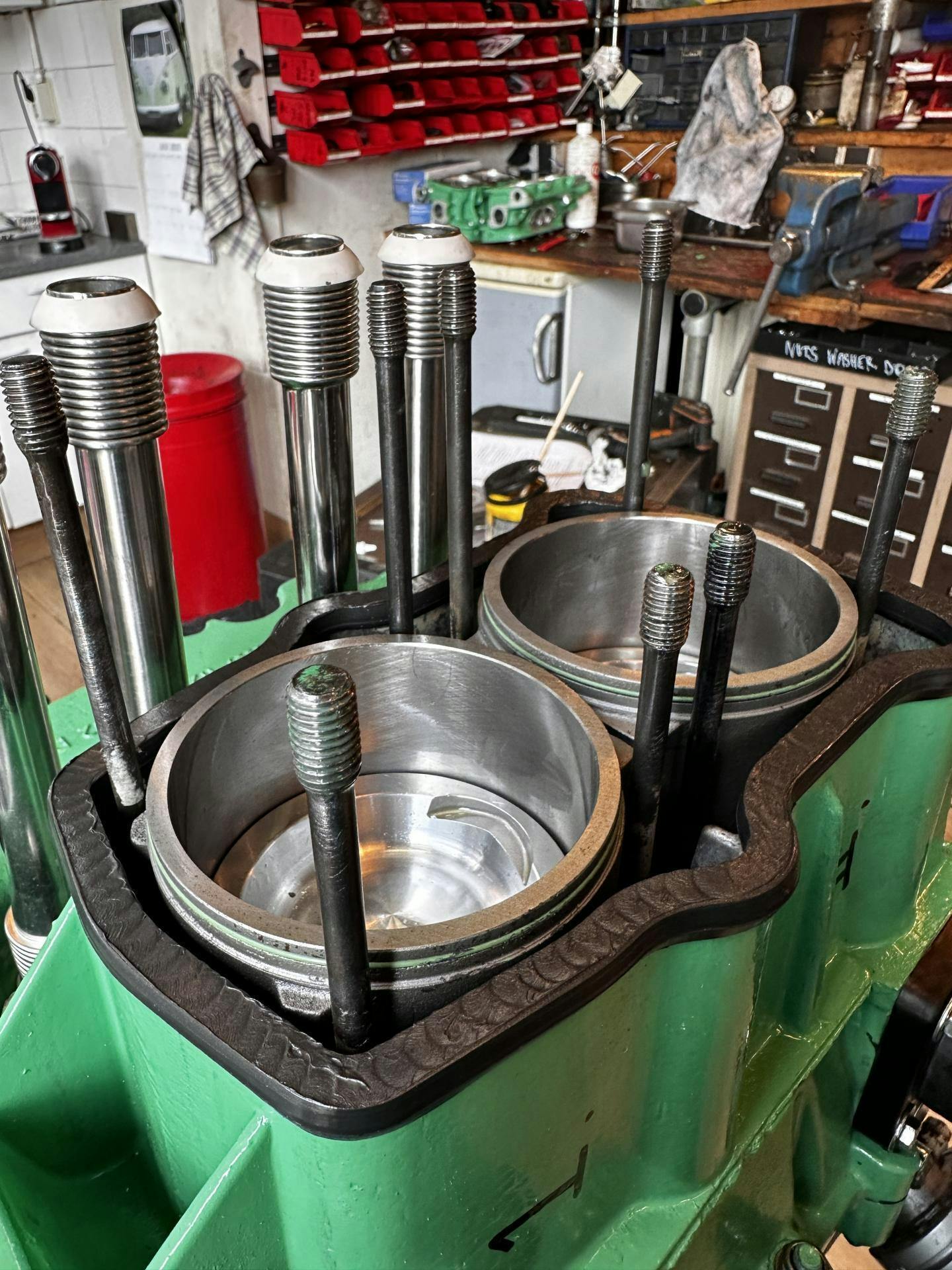

IMPORTANT NOTE: The engine block assembly (case) will need to be hand-machined for added clearance in several places, including (but not limited to) the roof and beneath piston at BDC and back side of the bosses into which the head studs install from the opposite side. The case is made from cast aluminum, and no two are exactly the same. There is no "blue print" or "program" to achieve this—it has to be done by hand by a very experienced and talented individual—please read this article for more information. The crankshaft/rod assembly, cylinder, and piston must be test-fitted repeatedly to ensure that the clearance is correct and adequate, while at the same time not going too far and maintaining the cleanliness required for any successful engine rebuild.

NOTE: Kit does NOT include installation instructions, and we will not provide technical support throughout the building process. If you do not have the tools, experience, and/or know-how to build a water boxer engine, please purchase one of our complete engines. For more information about WHY this kit excludes instructions, please read this article.

EMISSIONS INFORMATION: This GoWesty 2450cc Engine Kit (GVW-2450-KIT) has received an official California Air Resources Board (CARB) Executive Order #D-786-3, and is smog-legal in all 50 states.

Core Charges: Some of these parts are sold "exchange," which means that we need to get your old parts back for rebuilding. These parts have a "core charge" associated with them. You pay this core charge up front, and then we credit you when we receive your old parts for rebuilding. In some cases, some or all of your core charge may be forfeited if a part is not in rebuildable condition.

NOTE: This engine kit is intended for use only in a 2.1 liter engine block, and requires you to return a 2.1 crank.

To return your core, please visit our return portal. Enter your order number and postal code, and choose core return to receive an RMA and return instructions.

Requires 91 or higher octane fuel.

GoWesty recommends the highest octane you can get, even if your engine is rated to operate on a lower octane. The 2450cc MUST have 91 octane minimum. The other engines can run lower octane. It can NEVER hurt to use fuel of a higher octane than the minimum recommended, whereas using a lower octane can cause catastrophic engine failure. Fuel is all so expensive now, and the percent difference in cost between the lowest and highest octane is almost insignificant. Bottom line: It just does not make sense to use the lower octane stuff!

GoWesty 2450cc Engine Kit Wrench Rating


Pro — Requires professional-level tools, talent and experience.




All Wrench Ratings



Plug 'n' Play — Requires no or basic hand tools and no mechanical knowledge.


Handy — Requires some hand & power tools and minimal mechanical knowledge.


DIY — Requires a full tool set and broad mechanical knowledge.


Pro — Requires professional-level tools, talent and experience.
