CV Axle, Rear Trailing Arm, and Hub

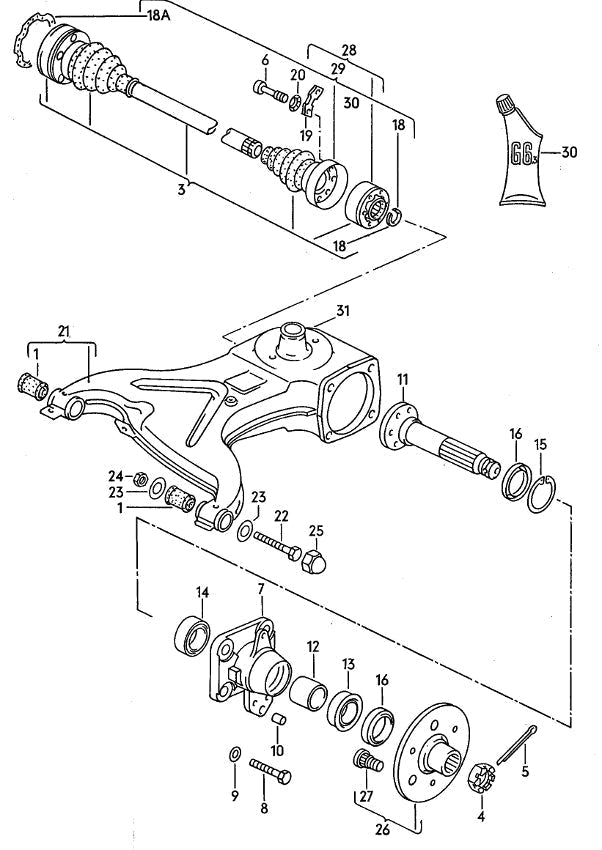

Visually identify the product you need in the schematic diagram, make note of the item number, then locate that same number in the hyperlink list. Click the link to be taken to the product page. If the item you need is not in the list, we do not currently carry it.
  • 1.  Rear Trailing Arm Bushing
  • 3.  Rear Drive Axle [M/T Vanagaon]
  • 3.  CV Drive Axle (Rear A/T)
  • 3.  Heavy-Duty 930 Axle Kit M/T
  • 3.  Heavy-Duty 930 Axle Kit A/T
  • 4.  Rear Axle Nut
  • 5.  Cotter Pin for Rear Axle Nut
  • 6.  12 Point Polygon Socket Head CV Bolt
  • 6.  CV Bolt Kit for Heavy-Duty 930 Axles
  • 8.  Rear Suspension Hardware Kit
  • 11.  Stub Axle (930 CV)
  • 11.  Stub Axle Set (930 CV)
  • 13.  Wheel Bearing - Rear Outer
  • 14.  Wheel Bearing - Rear Inner
  • 15.  Rear Wheel Bearing Clip
  • 16.  Wheel Bearing Seal - Rear Inner & Outer
  • 18.  Circlip for CV Joint
  • 20.  Serrated Lock Washer for Axle Bolts
  • 21.  Trailing Arm Set (Long Travel)
  • 21.  Trailing Arm Set (Standard Length)
  • 25.  Pivot Bolt Cap for Rear Suspension [Vanagon]
  • 27.  Wheel Stud [72mm]
  • 28.  CV Joint
  • 28.  Budget CV Joint & Boot Kit
  • 28.  CV Joint Bundle [Bus/Vanagon]
  • 29.  Budget CV Boot Kit
  • 29.  Rockford CV Boot
  • 29.  CV Axle Boot Bundle [Bus/Vanagon]
  • 29.  CV Boot for Heavy-Duty 930 Axles
  • 30.  Red Line CV-2 Grease (14oz. Jar)
  • 31.  Replacement Spring Plate for Trailing Arm
Back to schematic list
