[Digital Download] GoWesty Bumper Rear Hitch
| Product: | REAR-HITCH-DD |
|---|---|
| Works With: | 1980-1991 |
| Manufacturer: | GoWesty |
| Restock ETA: | We do not have an ETA for this item at this time. |
Proposition 65: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
THIS PRODUCT IS A DIGITAL DOWNLOAD - NOT A PHYSICAL PRODUCT
What’s included:

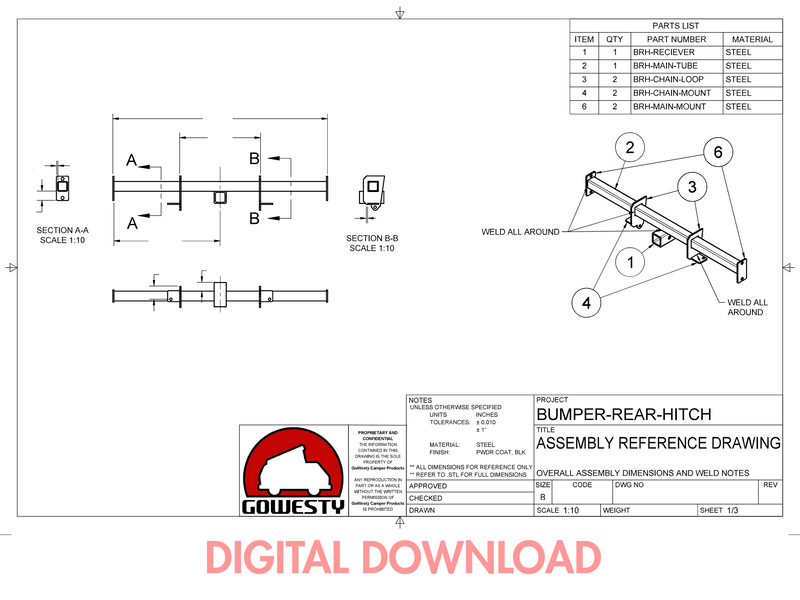

- 2D fabrication drawings (DXF/PDF)
- Installation guide
- Hardware specs
Important: As of October 2022, we no longer build our rear plate steel bumpers to accept this add-on hitch product. All of our current production rear bumpers are fabricated with this 2" receiver hitch built in. If you purchased a plate steel rear bumper from us prior to this date, and would now like to add a 2" receiver hitch, you can take this drawing to a fabricator and have one made.
Hitch specs:
• Industry standard 2" receiver for towing, and various accessories
• Class III size
This hitch is designed to integrate into old-style plate steel rear bumpers ONLY. If you have any other bumper on your vehicle, you can add our Stand Alone" Bolt-On Hitch.
Bike Carrier: Any bike carrier is AOK to use with this hitch. However, the maximum, combined weight of whatever you put on the bike carrier decreases the further out the load is placed. So, the weight of the bikes is the limiting factor. Any two bikes weighing no more than 60# each, or any four bikes weighing no more than 30# each is AOK. And always: Place the heaviest bikes as close to the bumper as possible.
Other accessory/load carrying device: The weight you can carry decreases 5#/inch from the face of the bumper. Never use a load carrying accessory (like a tray, for example) where any part of the accessory hangs out more than 30" from the fact of the bumper, and always load it as close to the bumper as possible.
Towing: Your tow ball insert must not place the two ball any further than 10" away from the face of the bumper. Maximum 200 lbs. We do not recommend using this hitch to tow more than 1500 lbs. Please read our article on towing before towing anything behind your Vanagon.
As part of our new line of digital download resources, your purchase includes everything you need to build the product yourself—complete with technical drawings and a full bill of materials, including hardware. Whether you're a professional fabricator or a hands-on hobbyist, these files are designed to help you confidently source materials and execute your build with accuracy and efficiency.
Inside the downloadable folder, you may find that some parts come with a DXF file. DXF stands for “Drawing Exchange Format,” and it’s a type of vector file used to describe parts in two dimensions. DXF files are commonly used in design and manufacturing processes, particularly when laser cutting or bending sheet metal is involved.
While we understand that not everyone has access to a laser cutter or press brake, DXF files are still incredibly useful. They provide highly accurate measurements, perfect for anyone building with just a hacksaw and a dream.
To open or modify a DXF file, you’ll need CAD software. Fusion 360 offers a free personal-use version on their website that lets you inspect and customize DXF files. Alternatively, custom sheet metal fabrication services like SendCutSend accept DXF files and can cut and form parts for you.
Have fun fabbing!
Inside the downloadable folder, you may find that some parts come with a DXF file. DXF stands for “Drawing Exchange Format,” and it’s a type of vector file used to describe parts in two dimensions. DXF files are commonly used in design and manufacturing processes, particularly when laser cutting or bending sheet metal is involved.
While we understand that not everyone has access to a laser cutter or press brake, DXF files are still incredibly useful. They provide highly accurate measurements, perfect for anyone building with just a hacksaw and a dream.
To open or modify a DXF file, you’ll need CAD software. Fusion 360 offers a free personal-use version on their website that lets you inspect and customize DXF files. Alternatively, custom sheet metal fabrication services like SendCutSend accept DXF files and can cut and form parts for you.
Have fun fabbing!
This file is for personal use only. It may not be used for any commercial purposes, including but not limited to resale, reproduction, distribution, or incorporation into products for sale. By downloading this file, you agree not to share, sell, or redistribute it in any form.
There are no returns for this digital product. All sales are final.
There are no returns for this digital product. All sales are final.
-
