Sway Bar End Link Assembly (Heavy-Duty) [Vanagon]

Product:GW-251-411-BNDL
Works With:1980-1991
Manufacturer:GoWesty
Difficulty:

Requires some hand & power tools and minimal mechanical knowledge.

$73.95

Proposition 65: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.

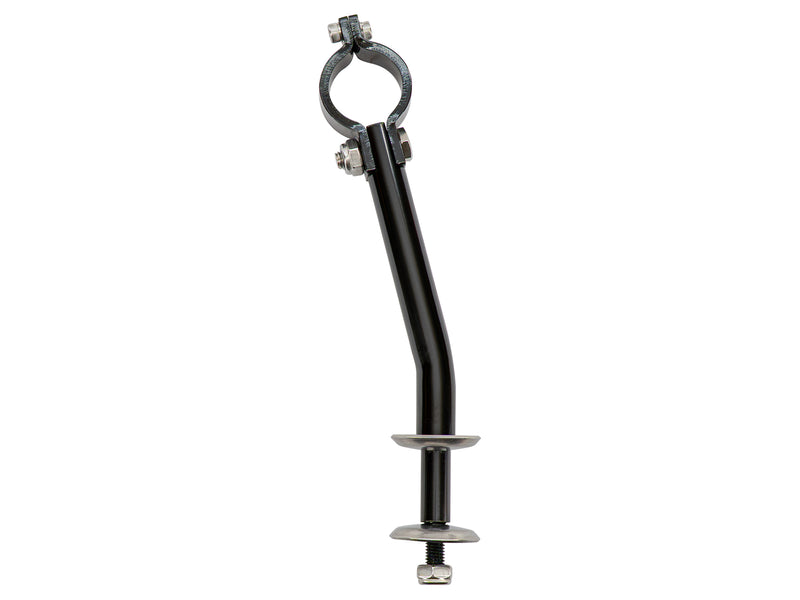

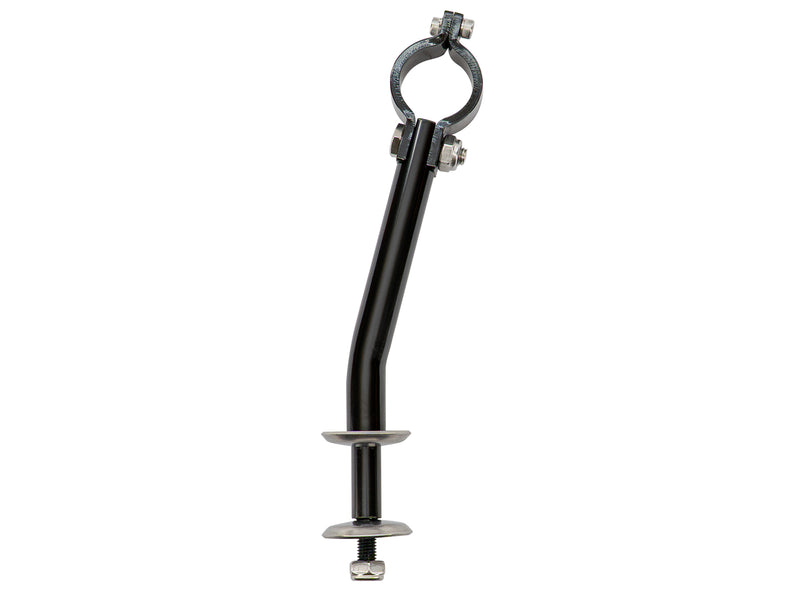

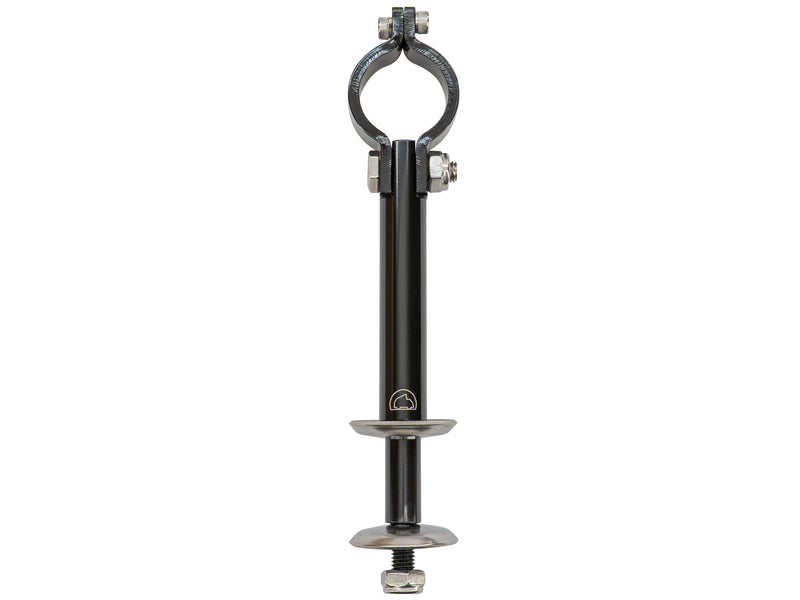

Heavy-Duty, EZ-Install Sway Bar End Links for all Vanagon, and work with both OEM VW sway bar bushings and GoWesty DuroGreen bushings.

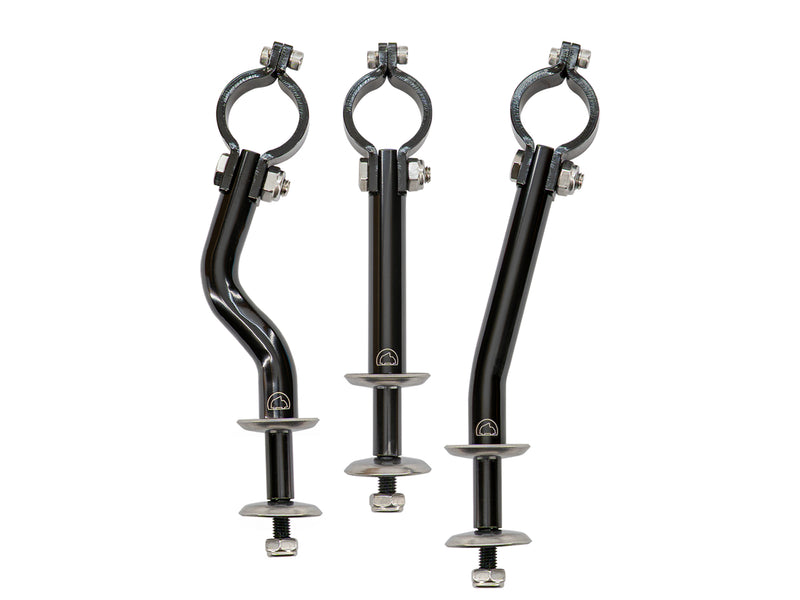

Fits: All 1980-91 2WD and 1986-91 4WD Syncros. Please make your selection in the drop-down menu. Sold individually. Two required per sway bar.

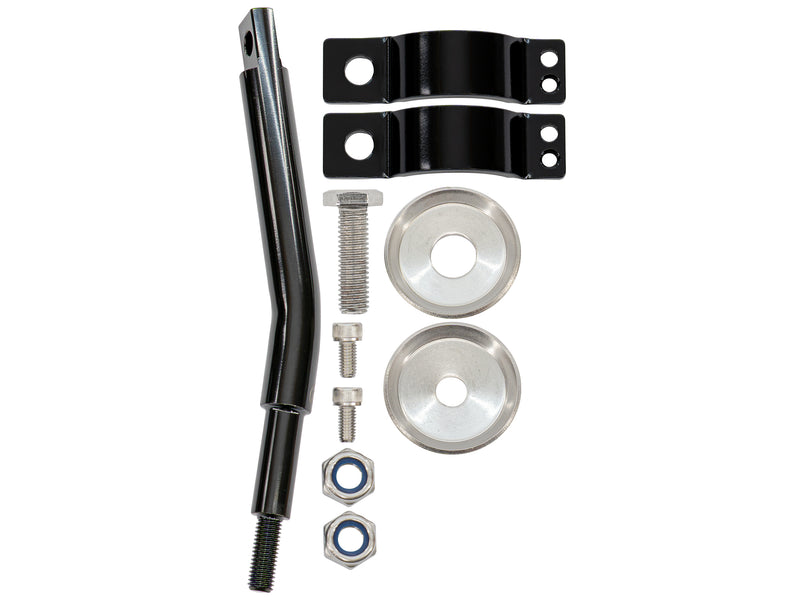

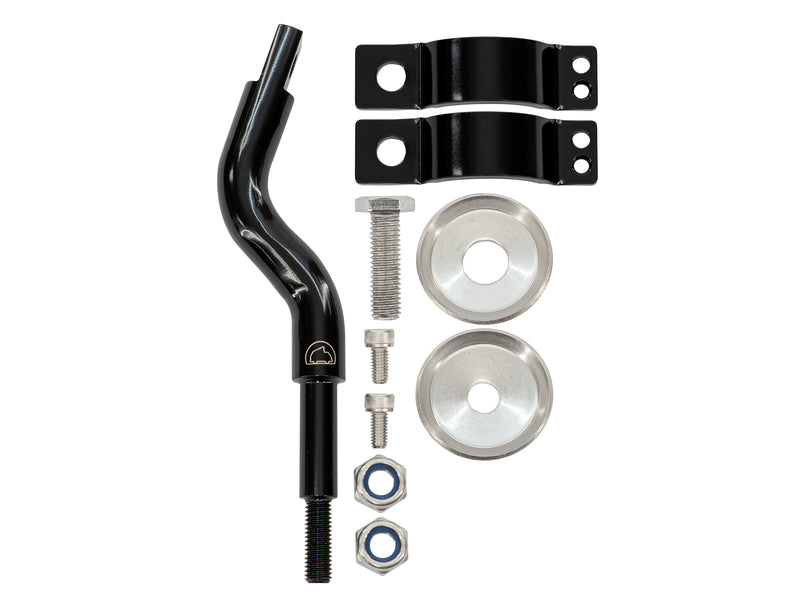

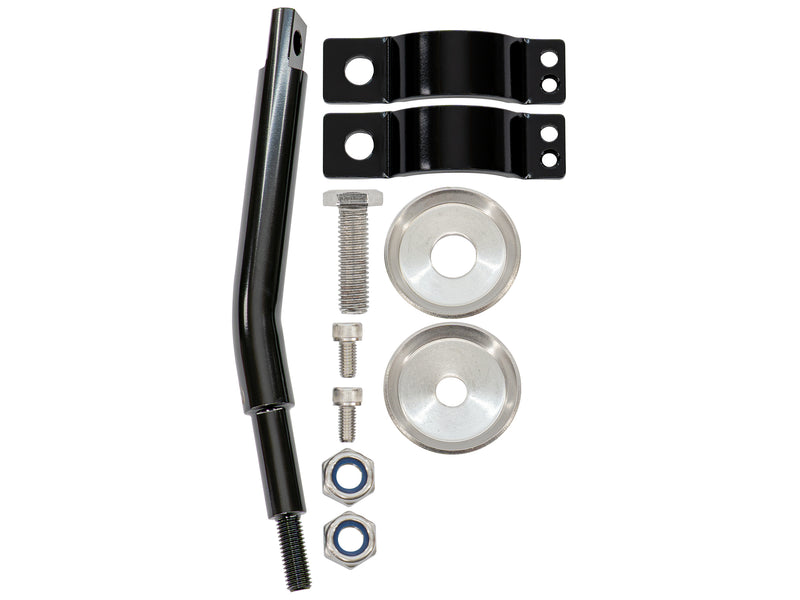

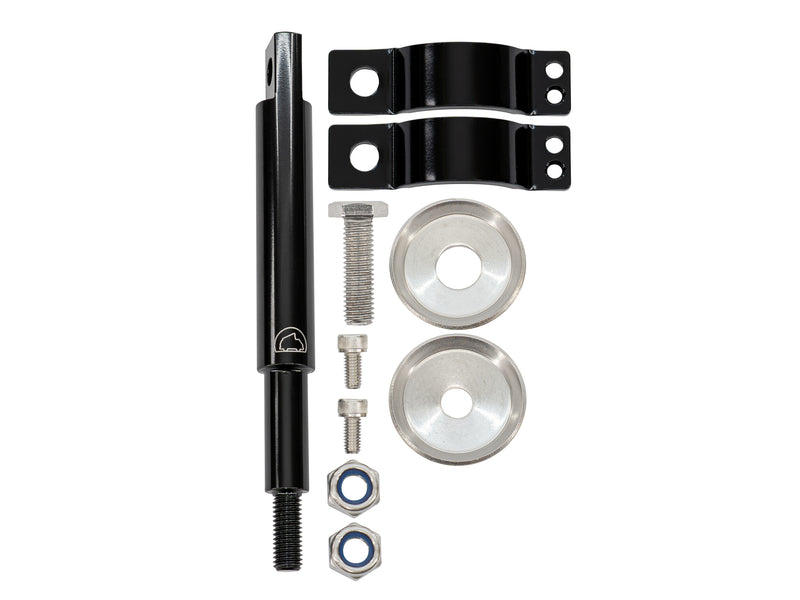

Assembly contents:
• (1) Sway Bar End Link - Electrophoresis Plated Steel
• (2) Upper End Link Clamps - Electrophoresis Plated Steel
• (2) Stainless M6 Socket Head Screws
• (1) Stainless M10 Bolt
• (2) Stainless M10 Nylock Nut
• (2) Lower End Link Washers

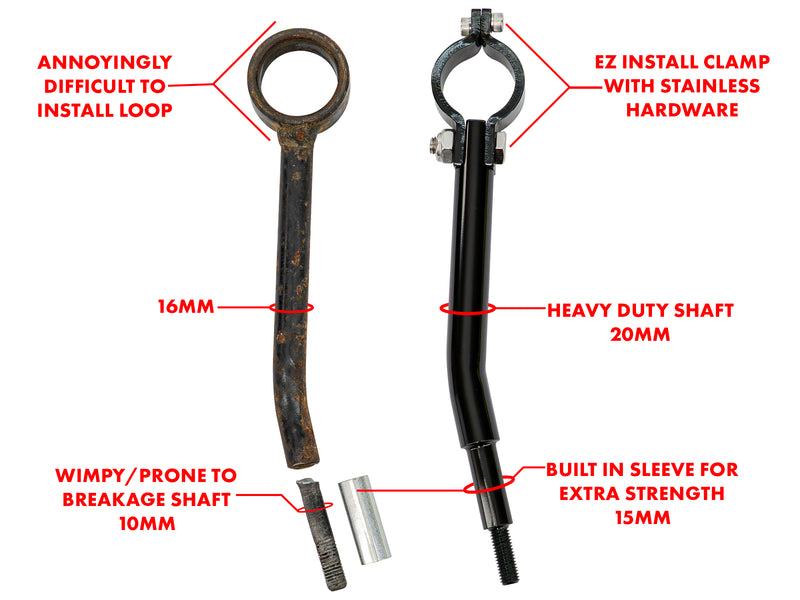

Our GoWesty Sway Bar End Links eliminate the two glaring weak points of the original Volkswagen design.

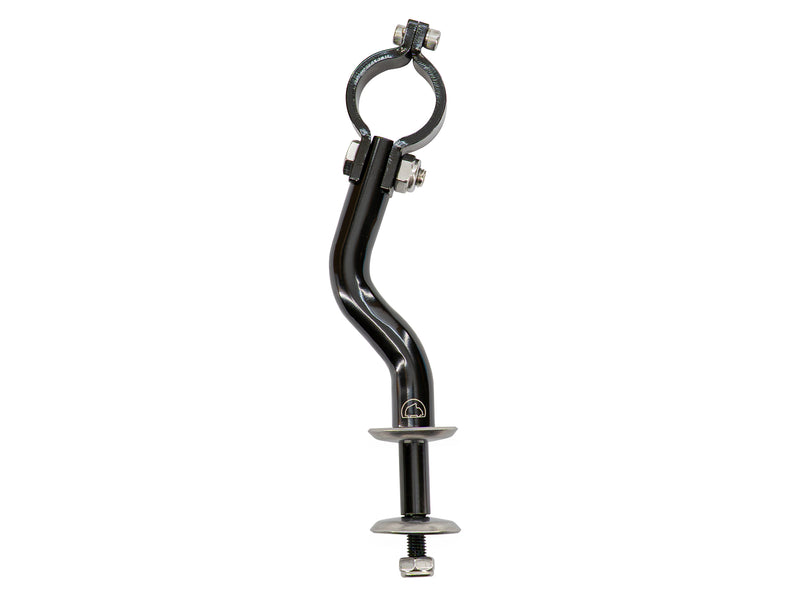

The first problem we solved was the extremely difficult installation issue. The original VW design, with its solid steel ring at the top, makes it nearly impossible for a mortal human to install by hand. We fixed this with a “clamshell” design that bolts together, making it easy to install with no special tools required.

The second problem we solved is a well-known weak point at the other end of the original VW link, where the sleeve slips over. The link fatigues and eventually breaks at this point. We incorporate the sleeve into the link itself, making ours over five times stronger in this area. The entire link is, in fact, larger in diameter from top to bottom.

The result? For not much more money, you can get a much smarter design that requires no steel bushing, superhuman strength, or special tools needed to install. And it will likely be the last link you will ever buy!

Pro tip: If you have just one end link that is broken, we suggest replacing both sides to ensure the sway bar connects to the lower control arms uniformly. Besides, if you broke one original end link, the other is not far behind. Replace both, cry once!

Sway Bar End Link Assembly (Heavy-Duty) [Vanagon] Wrench Rating


Handy — Requires some hand & power tools and minimal mechanical knowledge.
