[DIGITAL DOWNLOAD] Front Brush Guard

Product:GVW-BRUSH-GUARD-FRONT-DD
Works With:1980-1991
Manufacturer:GoWesty Engineering
$20.00

This item is not eligible for promotional discounts
Proposition 65: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.

THIS PRODUCT IS A DIGITAL DOWNLOAD - NOT A PHYSICAL PRODUCT

Smooth out the transition from bumper to skid plate with this lightweight, two-piece steel front brush guard – available as a digital download for do-it-yourself fabrication and installation. Designed to add a layer of protection and reduce hang-ups, it partially shields the front pinch weld and helps minimize damage during off-road impacts.

Installation requires a GoWesty Front Skid Plate and a GoWesty Plate Steel Front Bumper. This guard design is only compatible with our more recent, higher clearance bumpers, which have a chin cutout. The guard is designed to closely match the profile of that bumper to maintain its excellent approach angle. The latest GoWesty Front Skid Plates are designed to accommodate this brush guard, while the old style skid plates require some drilling.

What’s included:

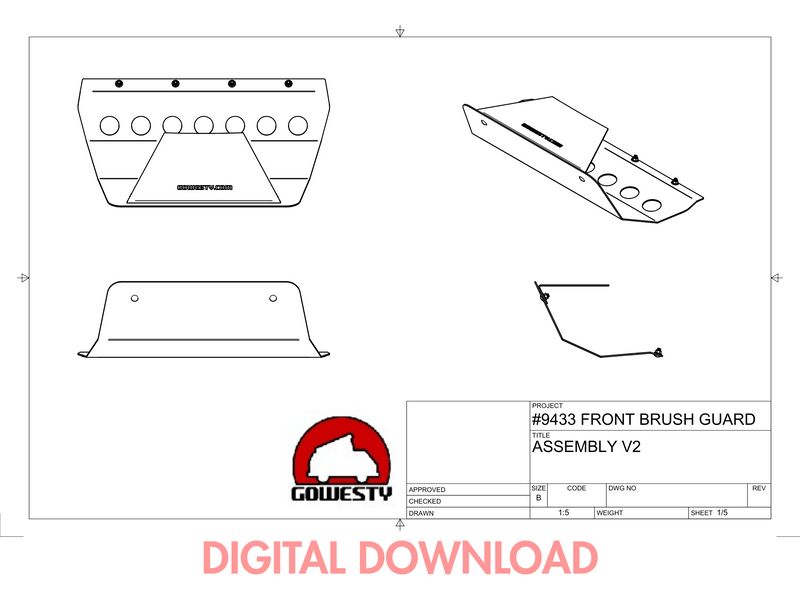

  • 2D fabrication drawings (DXF/PDF)
  • Installation guide
  • Hardware specs

Installation Notes:

This design requires drilling. Power tools and basic hand tools are required for installation.

Note: This design is not intended to function as a rock slider. We recommend that you exercise as much common sense as possible when flogging your van.

Front Brush Guard Installation

As part of our new line of digital download resources, your purchase includes everything you need to build the product yourself—complete with technical drawings and a full bill of materials, including hardware. Whether you're a professional fabricator or a hands-on hobbyist, these files are designed to help you confidently source materials and execute your build with accuracy and efficiency.

Inside the downloadable folder, you may find that some parts come with a DXF file. DXF stands for “Drawing Exchange Format,” and it’s a type of vector file used to describe parts in two dimensions. DXF files are commonly used in design and manufacturing processes, particularly when laser cutting or bending sheet metal is involved.

While we understand that not everyone has access to a laser cutter or press brake, DXF files are still incredibly useful. They provide highly accurate measurements, perfect for anyone building with just a hacksaw and a dream.

To open or modify a DXF file, you’ll need CAD software. Fusion 360 offers a free personal-use version on their website that lets you inspect and customize DXF files. Alternatively, custom sheet metal fabrication services like SendCutSend accept DXF files and can cut and form parts for you.

Have fun fabbing!
This file is for personal use only. It may not be used for any commercial purposes, including but not limited to resale, reproduction, distribution, or incorporation into products for sale. By downloading this file, you agree not to share, sell, or redistribute it in any form.

There are no returns for this digital product. All sales are final.
