GoWesty Rear Disc Brake Kit [Vanagon]

Works With:1980-1991

Requires a full tool set and broad mechanical knowledge.

11 Reviews
$833.57 - $887.76

Proposition 65: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
Self-certified made in USA of U.S. and imported parts

The GoWesty rear disc brake conversion is not simply a re-purposed mishmash of parts from other vehicles like some kits out there. This system is properly engineered, tested, and specifically designed to be a direct bolt-on fit on any Vanagon—using all new parts and with no modifications required. No machining your hubs, no messing around. Plus, you get an emergency brake that actually works! In fact, it delivers 30% greater holding power than the e-brake on your original drum brake system.

This brake system takes about as much time to install as it takes to do a regular "rear brake job" on the existing drum brake system—about four hours. That is, if you can find somebody who knows how to work on drum brakes! Nowadays, finding a mechanic who knows what they are doing when it comes to drum brakes is not easy. Drum brakes have pretty much gone the way of the dinosaur, plain and simple. Not only do they under-perform in terms of actually stopping your vehicle, they are very labor-intensive to service and maintain compared to disc brakes. It's really no wonder why they disappeared entirely from use decades ago.

The initial cost of this system is about twice as much as the cost for all the parts needed to completely rebuild the existing drum brake system. However, since the cost to maintain our new system thereafter is substantially less, the system will pay for itself—and then some—over time. Cost-wise, it's a no-brainer. Performance-wise, it is just plain silly not to switch!

Fits: All 1980-91 Vanagon models - 2WD & Syncro

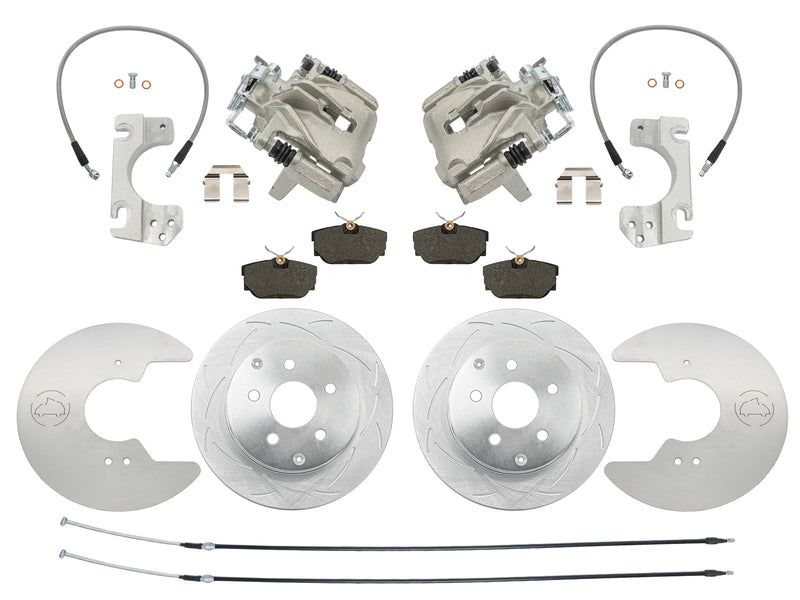

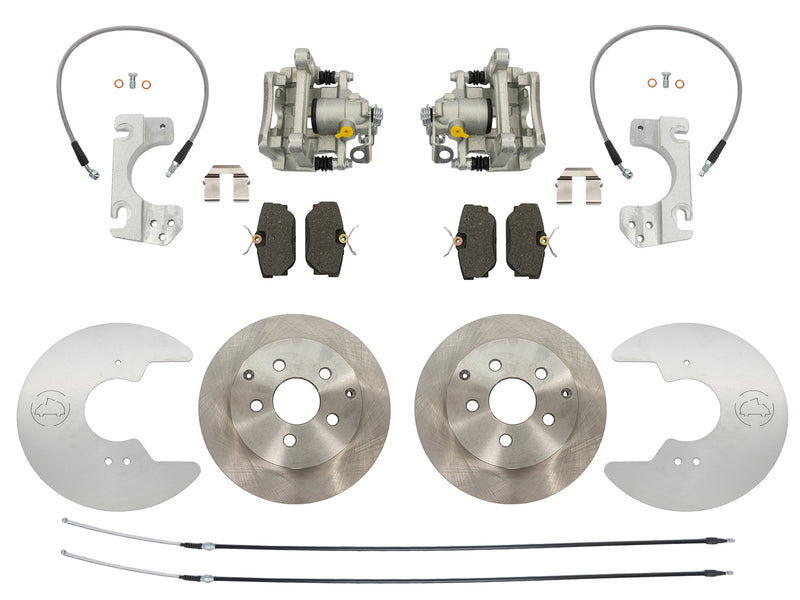

Kit includes:

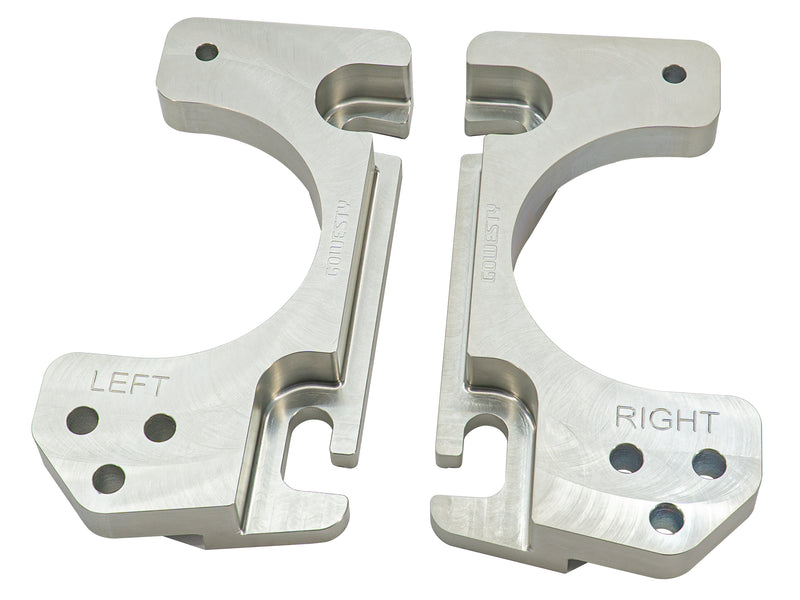

• (2) GoWesty drum-to-disc brake adaptor brackets
• (2) Calipers (Left & Right)
• (2) Rotors

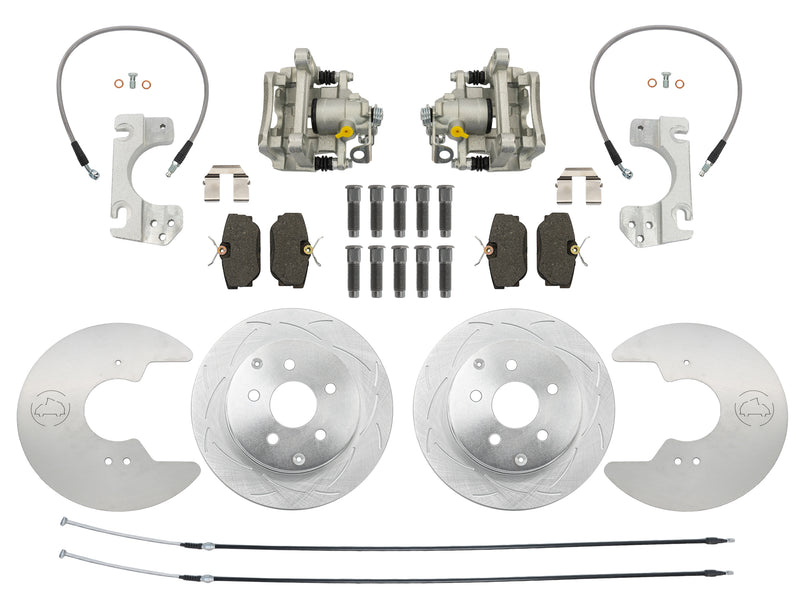

• (10) 56mm Rear Wheel Studs - Optional (See "Fit Notes" tab for details)
• (1) Brake Pad Set - Standard Quality Aftermarket, or Premium Name Brand (select in the drop-down menu).
• (2) Braided Stainless Hoses

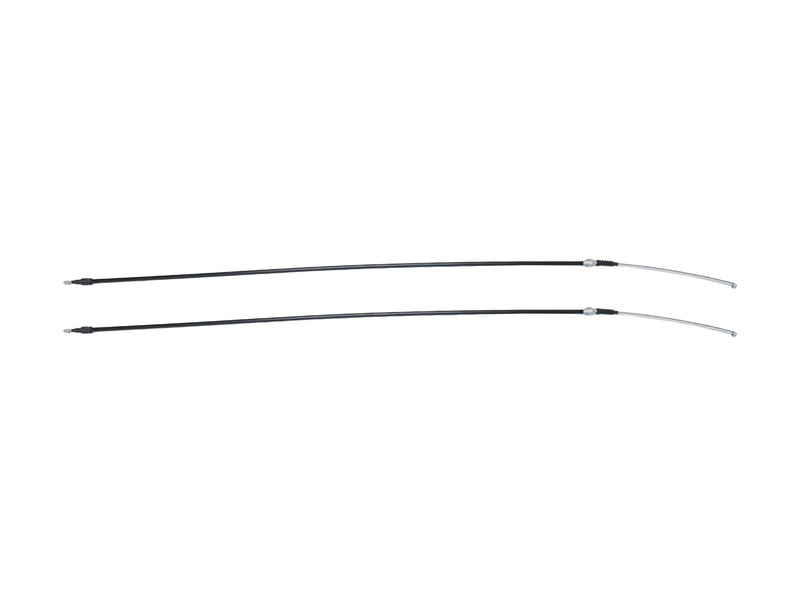

• (2) Parking Brake Cables

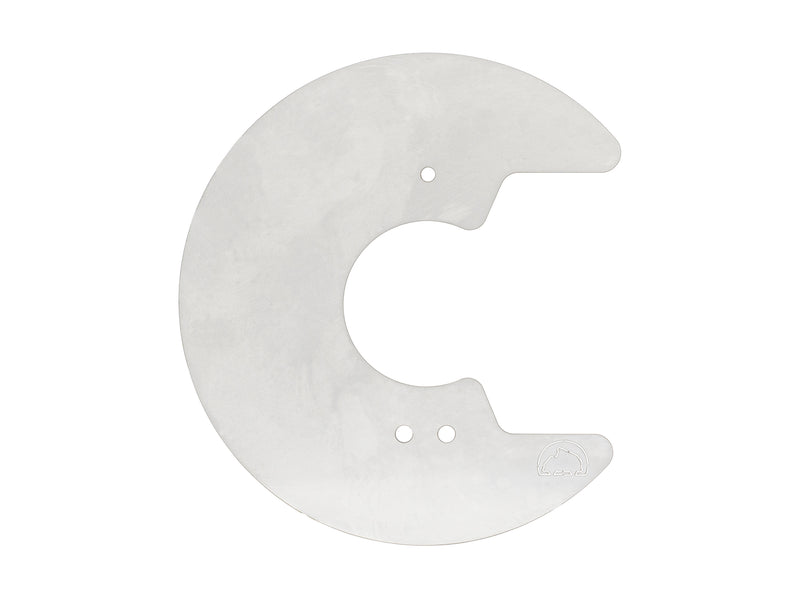

• (2) Stainless Dust Shields
(1) All needed hardware and detailed installation instructions

Features at a glance:
• Improved stopping performance
• Improved pedal feel
• Improved parking brake by about thirty-percent
• Better performance, better long-term availability, and better value than just rebuilding the existing drum brake system

Still need convincing?
• Additional cost to update to a disc brake system will pay for itself after the very first brake job!
• Drum brakes are obsolete. Move on up to the 21st (uh, I mean, mid-20th) century!
• You will find it difficult to locate a mechanic who really knows how to work on drum brakes, and even if you do...
• You will pay a lot more in labor to maintain the drum brake system over time.
• Disc brakes versus drum brakes: They are simpler, cheaper to maintain, stop better, and have a better parking brake, too!

*Requires 15" wheels or larger

Caliper assembly: The caliper, bracket, and pad assembly we designed the system around is an exact copy of the rear caliper assembly Volkswagen used on the 2001-03 Eurovan. We chose this caliper because it was designed for a vehicle of similar size and weight, so we knew it was up to the task in all regards, not the least of which is a parking brake that actually works!

Brake Pads: Replace with pads to fit a 1997-2003 Eurovan,
VW part#7D0698451J or universal part#D877-7754. Our kit ships with your choice of Standard Quality Aftermarket, or Premium Name Brand (brand varies depending on availability).

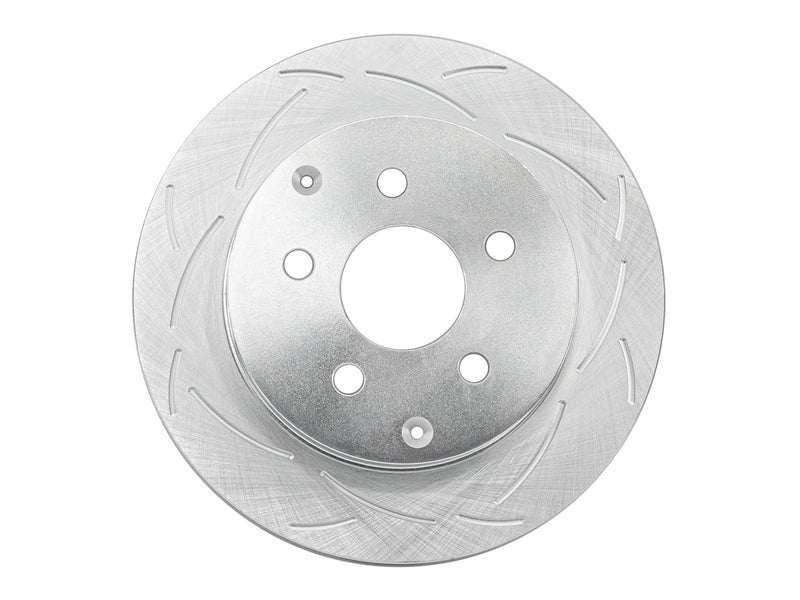

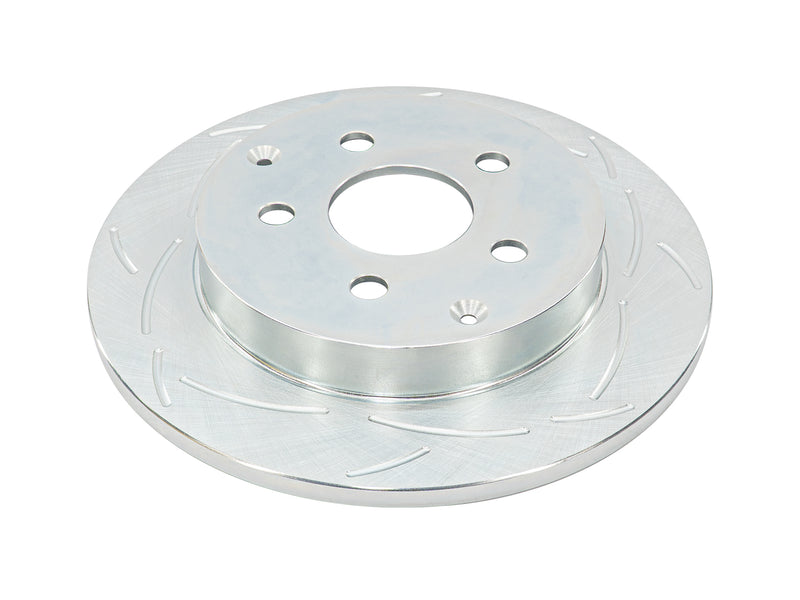

Rotor: The rotor is designed specifically to fit a Vanagon without modification to the hub. This is a key component in many ways, but especially because it does not require any modification to the hub—unlike other kits that repurpose a rotor from another vehicle that requires machined hubs to fit. Additionally, we specified a friction surface identical to the 2001-03 Eurovan, so we know it works perfectly with that caliper. The rotor diameter at the friction surface is 284mm.

Adaptor, hose, parking brake, hardware: In addition to the caliper and rotor, all the supporting parts in this kit were engineered right here at GoWesty. They have all been thoroughly thought-out, tested, and manufactured just for us (you). So, you can count on continued service parts on an ongoing basis!

Important fit notes:

This rear disc brake kit requires the use of 15" or larger wheels. No 14" steel or alloy wheel will fit. If you also have front brakes that require a 15 or larger wheel, you will need to carry a 15 or larger spare wheel and tire.

The new GoWesty brake rotor’s face (that the wheels studs pass through) is 4mm thicker than the drum’s face and thereby reduces lug nut thread engagement by 2-2/3rds turns. This doesn't pose an issue with any of the GoWesty 15" or 16" wheels we sell. If in doubt, check your current thread engagement before installing our brakes. If you have less than 9 turns currently, you will need (10) 56mm studs for the job, which are very easy to replace since the hubs will have to be removed and installed anyway as part of the brake installation procedure. Sold separately in the drop-down menu.

GoWesty Rear Disc Brake Kit [Vanagon] Wrench Rating

DIY — Requires a full tool set and broad mechanical knowledge.

All Wrench Ratings

Plug 'n' Play — Requires no or basic hand tools and no mechanical knowledge.

Handy — Requires some hand & power tools and minimal mechanical knowledge.

DIY — Requires a full tool set and broad mechanical knowledge.

Pro — Requires professional-level tools, talent and experience.
